JPThe JM-VL04 is a professional 4G OBD vehicle tracker you can easily install. With its advanced accelerometer, gyroscope, and special algorithm, JM-VL04 can detect improper driving behaviors, precisely calculate mileages, and prevent dark spots occur in areas with poor GNSS signals. By leveraging different 4G communication modules, it covers almost all global LTE frequency bands. A revolutionary update is the voice alarm, which can remind drivers to behave correctly when their bad driving activities have been detected. Moreover, it also supports the embedded microphone for remote listen-in.
The JM-VL04 is a professional 4G OBD vehicle tracker you can easily install. With its advanced accelerometer, gyroscope, and special algorithm, JM-VL04 can detect improper driving behaviors, precisely calculate mileages, and prevent dark spots occur in areas with poor GNSS signals. By leveraging different 4G communication modules, it covers almost all global LTE frequency bands. A revolutionary update is the voice alarm, which can remind drivers to behave correctly when their bad driving activities have been detected. Moreover, it also supports the embedded microphone for remote listen-in.
FEATURES
SPECIFICATIONS
DOWNLOADS
INS-aided GPS Tracking
Ensure constant tracking in the area with poor GPS signal or even without it.
4G LTE Communication
The device can receive and transmit data in the coverage of 4G, 3G and 2G networks.
Driving Behavior Analysis (Advanced)
Receive alerts when any of 8 kinds of dangerous driving behavior is detected.
Mileage Accuracy ≥98%
Precise mileage calculation based on a unique algorithm, the mileage error can be less than 2%.
Voice Alarm
In risky circumstances, internal speaker will sound human voice to remind drivers to drive carefully.
Remote Listen-in
Inconspicuous mic allows for remote audio monitoring of the environment around the device.
9-36V Operating Voltage
Compatible with a wide range of input voltage, able to work on diverse vehicles.
BLE4.0 Supported
Through Bluetooth connection you can configure parameters, upgrade software, and debug.
| GNSS | |
| Positioning system | GPS/GLONASS/BDS/GALILEO, AGPS/LBS assisted INS (inertial navigation system) |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -165 dBm |
| Acquisition sensitivity | -148 dBm (cold) /-163 dBM (hot) |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤32sec |
| Cellular | |
| Communication network | LTE Cat1 + WCDMA + GSM |
| Frequency | JM-VL04E: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8JM-VL04L: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 WCDMA: B1/B2/B5/B8 GSM/EDGE: B2/B3/B5/B8 |
| Power | |
| Battery | 50mAh industrial-grade LiCo battery |
| Input voltage | 9-36VDC |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| Connector | OBDII port |
| SIM | Nano-SIM |
| USB | 1 x Micro-USB for configuration |
| Data storage | 8MB flash memory |
| Physical specification | |
| Dimensions | 65.0 x 50.0 x 25.0mm |
| Weight | 60g |
| Operating environment | |
| Operating temperature | -20°C to 70°C |
| Operating humidity | 5%～95%, non-condensing |
| IP rating | IP41 |
| Feature | |
| Voice monitoring range | ≤5 meters |
| Sensors | Accelerometer and gyroscope |
| Ignition detection | External power voltage |
| Scenarios | Vehicle movement alert, Over-speed alert, Geo-fence, Voice-monitoring, Vehicle battery detection, Power supply disconnection |
| Driving behavior analysis | Harsh acceleration, Harsh braking, Harsh cornering, Sudden lane change, Collision, Skidding, Rollover, Roll & pitch |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
APPLICATIONS
Auto Insurance
Vehicle Rental
Eco-Driving
APPLICATIONS
Auto Insurance
Vehicle Rental
Eco-Driving

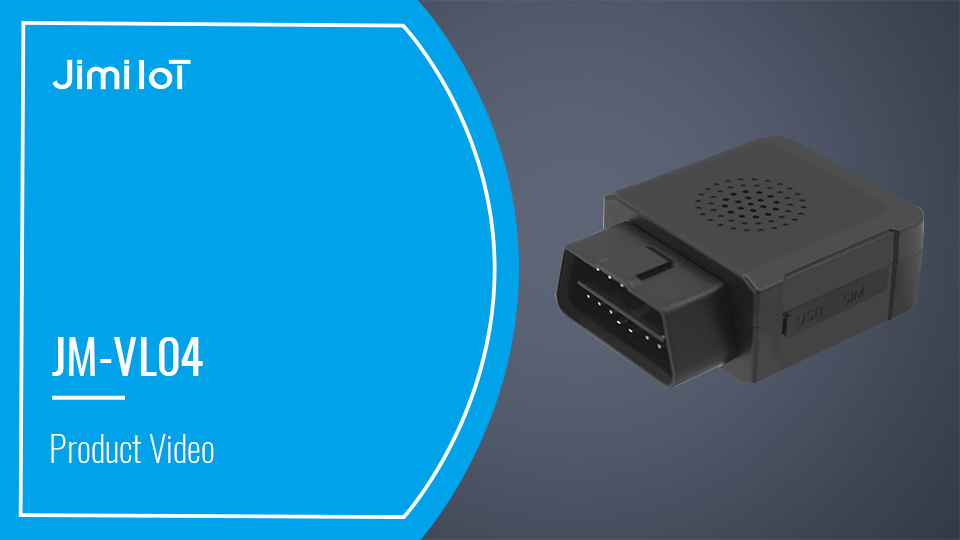

VIDEO
