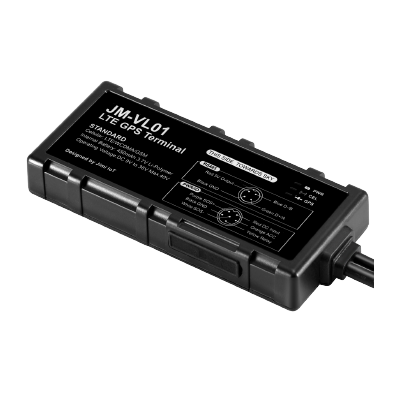

JPImprove the performance of your fleet business today with the feature-rich and lightning-fast JM-VL01. The JM-VL01 is a powerful and easy-to-install 4G GPS tracker that gives you actionable telematics insights. In addition to standard functions such as GPS location and geo-fence alerts, the suite of event-triggered alerts will make the VL01 a valuable part of your fleet management strategy.
Improve the performance of your fleet business today with the feature-rich and lightning-fast JM-VL01. The JM-VL01 is a powerful and easy-to-install 4G GPS tracker that gives you actionable telematics insights. In addition to standard functions such as GPS location and geo-fence alerts, the suite of event-triggered alerts will make the VL01 a valuable part of your fleet management strategy.
FEATURES
SPECIFICATIONS
DOWNLOADS
LTE, UMTS & GSM Network
The device can receive and transmit data in the coverage of 4G, 3G, and 2G networks.
Driving Behavior Analysis (Basic)
Receive alerts when any of 4 kinds of dangerous driving behavior is detected.
Multiple Alerts
Instant alerts for atypical events such as geo-fence entry/exit, abnormal vibration, speeding, power supply disconnection, etc.
Ignition Detection
Constantly detect the ACC/ignition status of the vehicle.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
RS485 Fuel Sensor (Optional)
Quickly get notified when fuel level is harshly changing.
RS485 Temperature Sensor (Optional)
Prevent rot and damage caused by excessive temperature.
Panic Button
Contact dispatch or emergency support with a discreet, in-cabin SOS button.
| GNSS | |
| Positioning system | GPS |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -162dBm |
| Acquisition sensitivity | -149dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤45sec |
| Cellular | |
| Communication network | LTE/UMTS/GSM |
| Frequency | JM-VL01LA: LTE: B1/B2/B3/B4/B5/B7/B8/B28AB UMTS/HSPA: 850/900/1900/2100 MHz GSM: 850/900/1800/1900 MHzJM-VL01E: LTE: B1/B3/B5/B7/B8/B20/B28A UMTS/HSPA: 900/1900/2100 MHz GSM: 900/1800 MHz |
| Power | |
| Battery | 450mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-36VDC |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Micro-SIM |
| Data storage | 4Gb+2Gb |
| Digital inputs | ACC, SOS |
| Digital outputs | Relay |
| Physical specification | |
| Dimensions | 113.0 x 51.0 x 20.0mm |
| Weight | 105g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| Operating humidity | 5%～95%, non-condensing |
| IP rating | IP65 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | Vehicle movement alert, Over-speed alert, Geo-fence, Vehicle battery detection, Power supply disconnection |
| Driving behavior analysis | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
