JPSupporting a 9-90V voltage range, the JM-VG03 GPS tracker series work suitably with a wide range of vehicles. Thanks to its inbuilt large antenna and compact size, it delivers faster and more accurate positions and can be hidden-installed. In addition to its general features, alerts of power supply disconnection and tamper are pluses for anti-theft.
Supporting a 9-90V voltage range, the JM-VG03 GPS tracker series work suitably with a wide range of vehicles. Thanks to its inbuilt large antenna and compact size, it delivers faster and more accurate positions and can be hidden-installed. In addition to its general features, alerts of power supply disconnection and tamper are pluses for anti-theft.
FEATURES
SPECIFICATIONS
DOWNLOADS
Driving Behavior Analysis (Basic)
Receive alerts when any of 4 kinds of dangerous driving behavior is detected.
IP65 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an installed relay.
Ignition Detection
Constantly detect the ACC/ignition status of the vehicle.
Geo-fence
A virtual area set on platform by yourself, you'll be informed when vehicle crossing its boundary.
Multiple Alerts
Instant alerts for atypical events such as low battery, speeding, removal, drifting, etc.
| GNSS | |
| Positioning system | GPS+BDS+LBS |
| Positioning accuracy | ＜2.5m CEP |
| Tracking sensitivity | -162dBm |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start ≤1sec Avg. cold start ≤35sec |
| Cellular | |
| Communication network | GSM |
| Frequency | Quad-band 850/900/1800/1900 MHz |
| Power | |
| Battery | 60mAh/3.7V industrial-grade Li-Polymer battery |
| Input voltage | 9-90VDC |
| Interface | |
| LED indication | GPS (Blue), GSM (Green) |
| SIM | Micro-SIM |
| Data storage | 32+32Mb |
| Interface | 4 pin (V+, V-, ACC, Relay) |
| Physical specification | |
| Dimensions | 79.0 x 38.0 x 14mm |
| Weight | 29g |
| Operating environment | |
| Operating temperature | -20°C to 70°C |
| IP rating | IP65 |
| Feature | |
| Sensors | Accelerometer |
| Ignition detection | ACC Detection |
| Scenarios | Vehicle movement alert, Over-speed alert, Geo-fence, Vehicle battery detection, Power supply disconnection |
| Driving behavior analysis | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
APPLICATIONS
Motorcycle
Electric Bike
Light Vehicle
APPLICATIONS
Motorcycle
Electric Bike
Light Vehicle

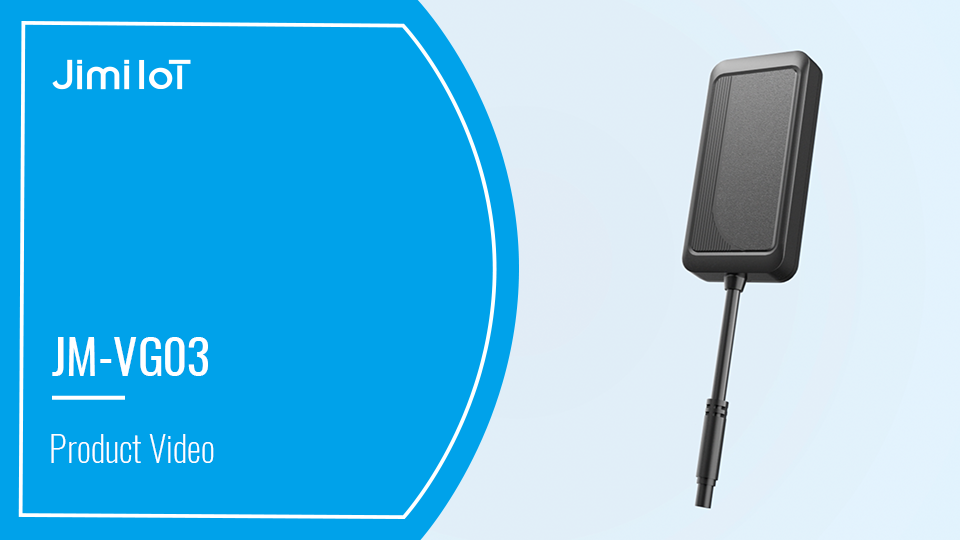

VIDEO
