JC451

Multi-Channel AI CamBox

Description

The JC451 is a remote video monitoring terminal designed specifically for commercial vehicles. It features a built-in antenna system for easy cabling. It can be connected to up to 5 cameras to provide fleet managers with full visibility of the vehicle, including the road ahead, the driver, the sides and the road behind. The main unit can simultaneously support the operation of two integrated visual algorithms-ADAS and DMS-that constantly monitor the following distance, lane keeping and driver alertness. This ensures that the driver and fleet manager are immediately alerted to any potential hazards, making the road safer. In addition, the JC451 also features multiple alerts such as SOS, making it a suitable and applicable solution for managing public transportation, logistics vehicles hazmat transport vehicles school buses and more.

JC451

Multi-Channel AI CamBox

Description

Ⅹ

Product Discontinued

Add Your Heading Text Here 5 seconds...

Can't wait? Click here to manually redirect.

FEATURES

SPECIFICATIONS

DOWNLOADS

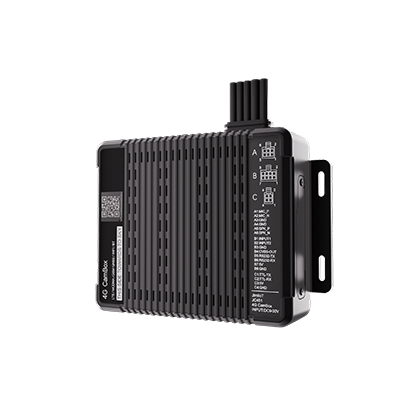

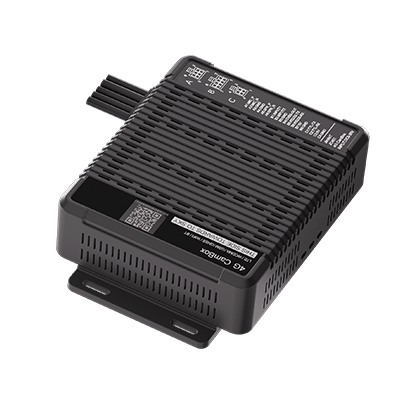

Split-System Design

The main unit is independent of the cameras, that is, it houses no cameras to protect itself from being exposed and for discreet installation; while the antennas are built inside to simplify cable routing.

Extension Interface

Various ports such as RS232 and TTL provide support for optional accessories such as fuel and temperature sensors.

Extension Interface

Various ports such as RS232 and TTL provide support for optional accessories such as fuel and temperature sensors.

Visual AI Algorithms

The device uses a variety of AI algorithms, such as ADAS and DMS, to provide tools that help improve road safety and driver safety and compliance.

Multi-Channel Recording

Multiple cameras can be configured to monitor various angles, providing a fuller view of the vehicle and its surroundings.

Multi-Channel Recording

Multiple cameras can be configured to monitor various angles, providing a fuller view of the vehicle and its surroundings.

Expanded Storage

Dual micro TF card slots provide a maximum of 512GB on-device storage, allowing for up-to-7-day 5 cameras recording simultaneously.

Cellular
Technology	4G LTE Cat 4, 3G (WCDMA), 2G (GSM)
Frequency	JC451-EUX: FDD-LTE: B1/B3/B7/B8/B20/B28A TDD-LTE: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8
GNSS
Positioning system	GPS, BDS
Camera
Camera support	Max. 5 (11080P + 4720P), refer to Optional Configuration*
Video format	.ts
Power
Input voltage	DC 9–30V
Operating environment
Operating temperature	–20°C to +70°C
Storage temperature	–30°C to +85°C
Physical specification
Dimensions	118.0 x 97.0 x 32.0mm
Weight	350g
Interface
LED indication	Red (Power), Blue (Cellular), Green (GNSS)
SIM	Nano-SIM
External memory	TF card (up to 256GB*2)
USB	Type-C
WiFi	2.4GHz, Support AP Mode/STD Mode/WiFi Direct
Bluetooth	BLE 4.0
Microphone	Support
Speaker	Support
Digital I/Os	2: SOS2, 1 Relay, 2*Reserved inputs
Analog I/Os	1*CVBS-OUT
Serial ports	1RS232, 1TTL
Sensor	3-Axis accelerometer
Feature
ADAS	FCW, HMW, LDW
DMS (Optional)	Phone use, Smoking, Distraction, Yawning, Eyes closed, No face detected
Configuration support	GPRS, SMS, Memory card, APP
Firmware update	USB Cable, Memory card, OTA
Certification (planning)	CE

*Optional Configuration required to be customized or purchased separately.

APPLICATIONS

Hazmat Trucking

Logistics Service

Passenger Transport Service
